PurgeX® Oil and Grease Dispensing | Complete Lubrication Systems

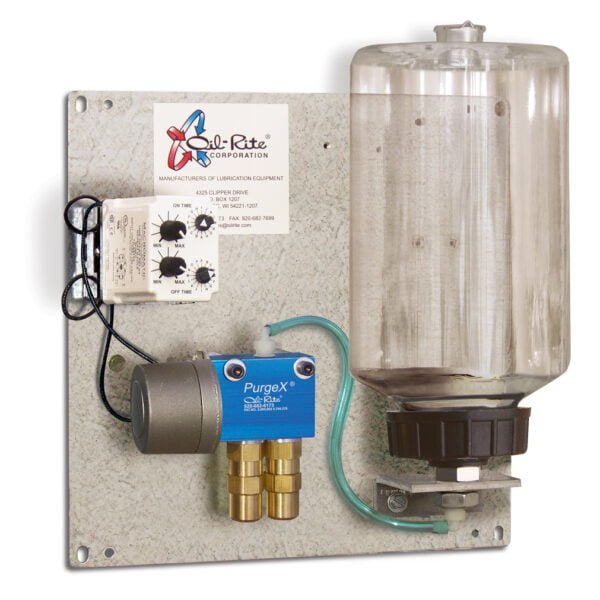

PurgeX Complete Systems – “Quick Packs” for Oil Dispensing Standard Motor Operated

SPECIFICATIONS

Lubricant Type	Liquid/Oil
Feeds	1, 2, 3, 4
Reservoir Capacity	1 pt, 1 qt, 1/2 gal
Voltage	120V/60Hz, 24VDC
Volume Output Per Feed	0 to .009 cubic inches
Piston	.250" dia
Liquid Inlet	1/8" Female NPT
Outlet	1/8" Female NPT
Motor Speed	1 RPM
Volume Adjustment	Inside Pump
Seals	Buna-N
Mounting Plate	Galvanized Steel

Selection SKU YB4102-100 Complete Lubrication Systems, PurgeX® Oil and Grease Dispensing

Feeds

Reservoir Capacity

Voltage

Request a Quote

Add To Compare

View Compare

Description
Additional information

Description

These “Quick Pack” Centralized Lubrication Systems feature standard Motor Operated PurgeX® with internally adjusted liquid volume output.

Additional information

Lubricant Type	Liquid/Oil
Feeds	1, 2, 3, 4
Reservoir Capacity	1 pt, 1 qt, 1/2 gal
Voltage	120V/60Hz, 24VDC
Volume Output Per Feed	0 to .009 cubic inches
Piston	.250" dia
Liquid Inlet	1/8" Female NPT
Outlet	1/8" Female NPT
Motor Speed	1 RPM
Volume Adjustment	Inside Pump
Seals	Buna-N
Mounting Plate	Galvanized Steel
